Star ST-20
EDUT

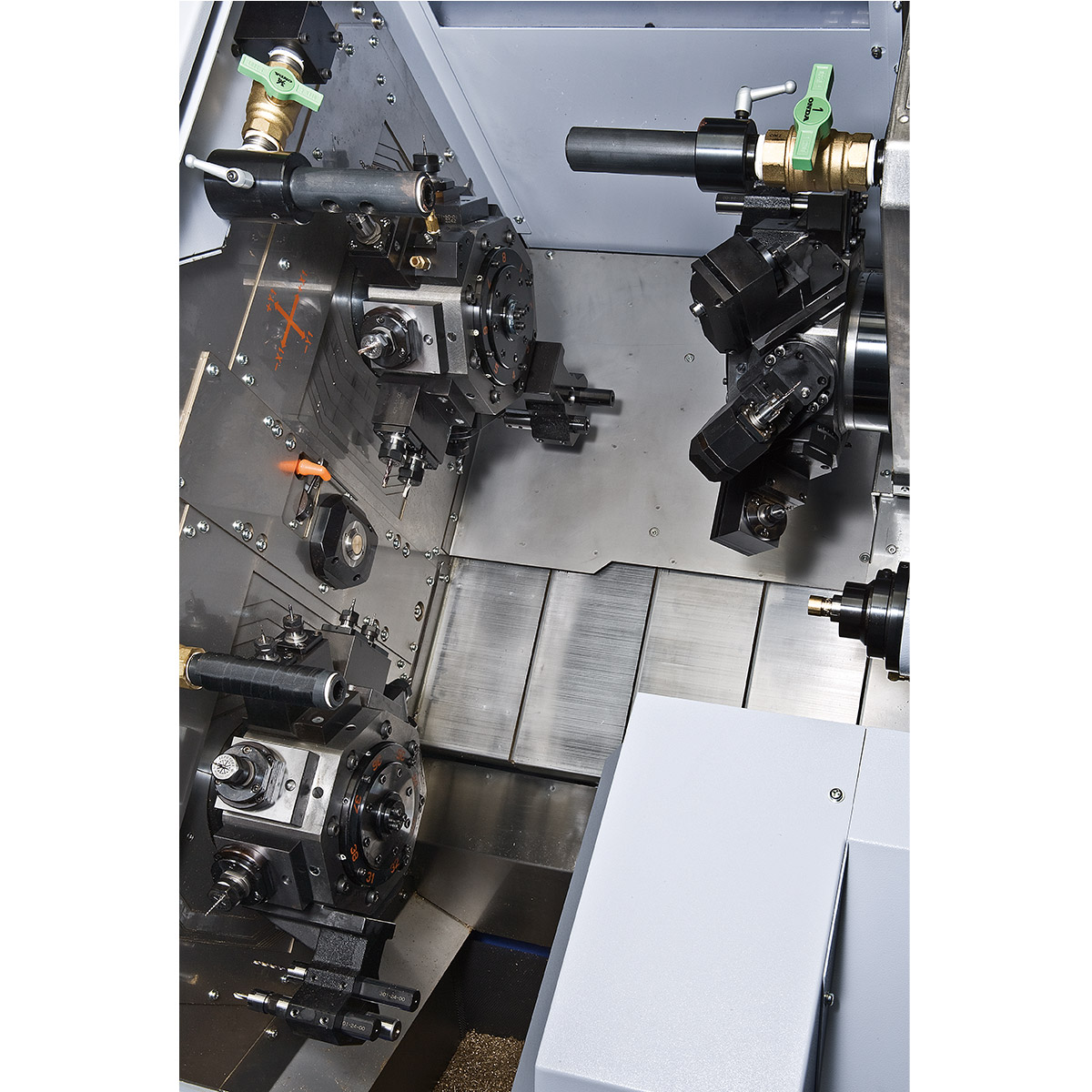

The new ST-20 fascinates with various possibilities of overlapped machining with three independent turrets with each 8 stations. The turret drive of 2,5 kW and the newest FANUC FANUC 31i-B control complete the entire package.
- C-axis control as standard on main and sub spindle
- completely independent backworking
- movable control panel
- two tool carriers for simultaneous machining on the front side
- additional longitudinal axis on the tool
- drive power turret 2,5 kW
- three independent tool systems
TYÖKALUSTUS

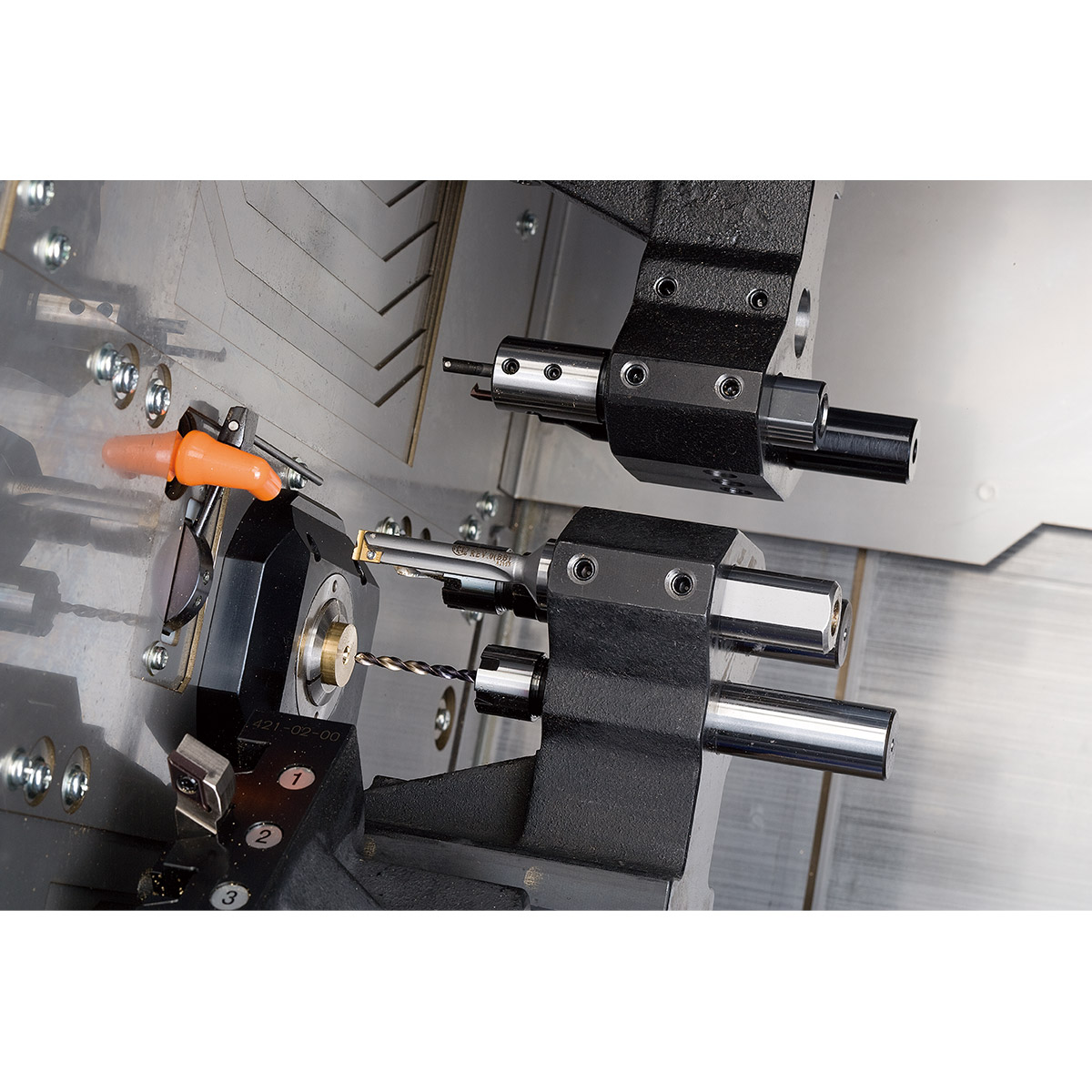

- 3 turrets each with 8 tools for excellent power-driven machining
- 24 + α power-driven tools for turning, drilling, cross drilling and backworking

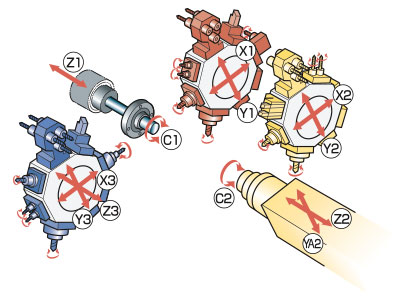

- 12 axis
Tekniset tiedot |
|
| Pääkara |
|
| Max. sorvaushalkaisija |
Ø 20 mm / 23 mm (optio) |
| Max. sorvauspituus | 350 mm |
| Akseleiden määrä | 12 |
| Pääkara | Z1 / Y 1 akselit |
| Revolveri 1 | X1 / Y1 akselit |
| Revolveri 3 | X3 / Y3 / Z3 akselit |
| Karamoottori | 5,5 kW |
| Pääkaran nopeus | 10,000 rpm |
| Revolverin 1 ja 3 teho | 2,5 kW |
| Revolverin 1 ja 3 kierrosnopeus | 5,700 rpm |
Vastakara |
|
| Vastakara | X2 / Z2 / C2 akselit |
| Revolveri 2 | X2 / Y2 akselit |
| Max. kiinnityshalkaisija | 20 mm / 23 mm (optio) |
| Karateho | 5,5 kW |
| Vastakaran nopeus | 10,000 rpm |
| Revolverin 2 teho | 2,5 kW |
| Revolverin 2 nopeus | 5,700 rpm |
